Shear-Free or Elongational Flow And Viscosity

The elongational flow properties of polymers are of great importance in polymer resin processing such as film blowing and fiber spinning and are essential in the design of processing equipment, process optimization, and troubleshooting.

In analogy to the shear rate, the elongational flow rate is defined by:

dε / dt = dv / L = L-1 dL / dt

and the elongational viscosity (also known as extension, tension, traction or stretching viscosity) is defined by

λ = σ / (dε / dt)

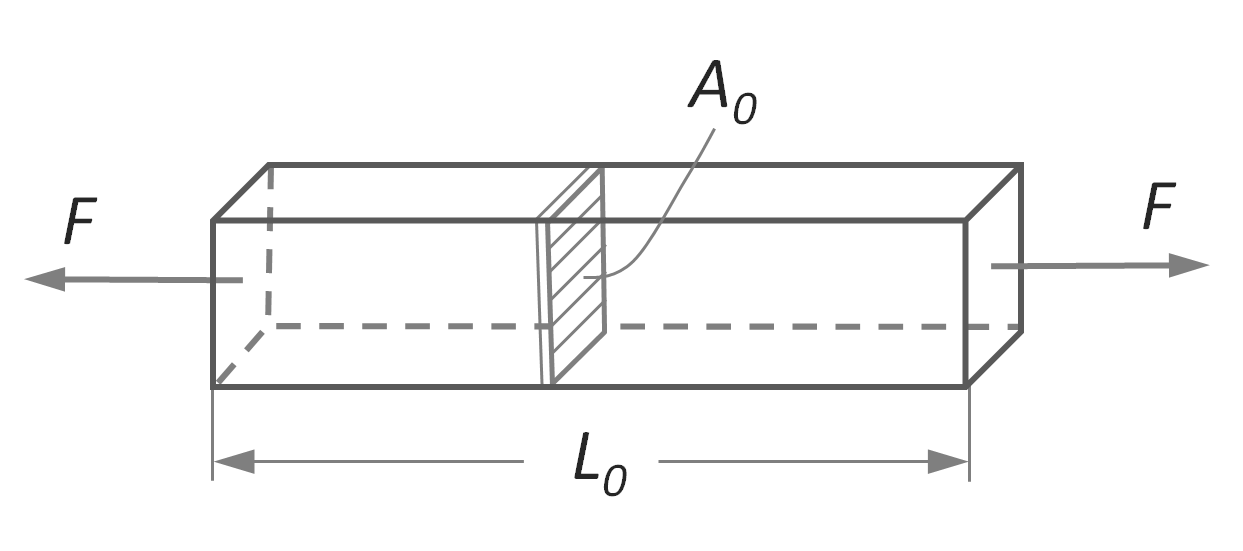

where L is the length of the tensile bar and ε is the true strain (also called Hencky strain). If the material does not flow, the equation above simplifies to Hooke's law:

E = σ / ε

where E is the Young's modulus. It is the slope of the stress-strain curve.

Velocity Field of Uniaxial Elongational Flow

CROW logo



Three types of pure elongational flow behavior may be observed:

Tension stiffening has been observed for low density polyethylene (LDPE), whereas linear olefins such as high density polyethylene (HDPE) and polypropylene, exhibit tension thinning when exposed to high tensile stress (elongational flow rates). Most other polymers appear to be Troutonian materials, that is, the tension viscosity is more or less independent of flow rate. This includes polymethyl methacrylate (PMMA), polystyrene (PS), polyethylene terpehthalate (PETE), polycarbonate (PC) and polysulfone (PES).

There are three simple types of shear-free elongational flow experiments that can be conducted in the laboratory:

In all three experiments, it is assumed that the polymer is incompressible, so that vx + vy + vz = 0. These ideal flow conditions are an oversimplification of the true flow that occurs during processing of a resin. A liquid plastic may be subjected to both shear and elongational strain and the flow might be nonuniform. Furthermore, elongational flow during processing is usually non-isothermal and often results in a phase change to a semi-crystalline or solid (oriented) amorphous state.

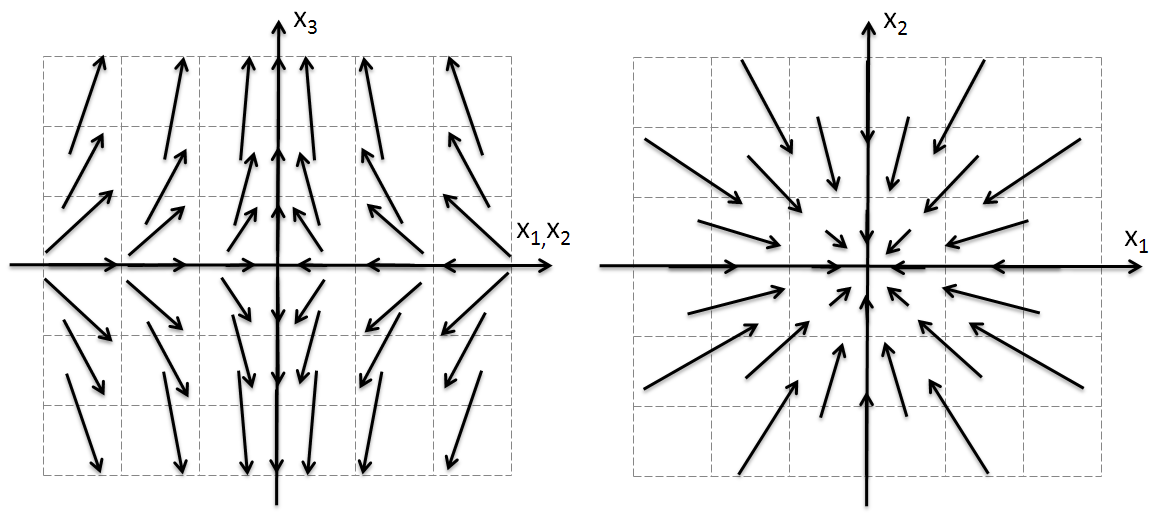

Below, we will discuss in more detail the uniaxial elongational flow. In this case, strong stretching occurs in the x-direction and contraction occurrs equally in the y- and z-directions. The velocity field of this situation is schematically shown below.

Velocity Field of Uniaxial Elongational Flow

CROW logo

In a constant strain rate experiment, a test specimen (molten polymer rod or fiber) is stretched at a constant flow rate. This requires that the velocity v is increased in line with the specimen end separation. As will be shown below, to achieve this condition, the length of the specimen must exponentially increase in time, L(t) = L0 et·dε/dt, wheras in real processing operations the strain rates are variable.

The elongational strain may be written in terms of the true strain or logarithmic strain:

dε / dt = d{ln [L(t) / L0]} / dt

where L0 is the inital length of the specimen and L(t) is the length at time t. Since at t = 0, L / L0 = 1 and the strain rate is constant, the equation above simplifies to

dε / dt = ln[L(t) / L0] / t

To calculate the stress at time t, both the tensile force F(t) and the corss-sectional area A(t) at time t have to be measured:

σ(t) = F(t) / A(t)

However, it is much easier to measure the length of the sample. For incompressible materials,

L(t) / L0 = A0 / A(t),

it follows

σt = F(t) / A(t) = F(t) / A0 · [L(t) / L0 ] = F(t) et · dε0/dt / A0

whereas for the tension viscosity (elongational) λ it follows

λ = σ(t) / (dε / dt) = t σ(t) / ln[L(t) / L0] = (t F(t) / A0) · et · dε / dt / ln[L(t) / L0]

References
  1. F.T. Trouton, Proceeding of the Royal Society, Vol. 77, Issue 519, page 426 (1906)
  • Summary

    Elongational Viscosity

    The elongational viscosity is defined as the elongational stress to elongational strain rate. It is the resistance of a liquid to elongational deformation.

  • The elongational viscosity is considerably more difficult to measure than the shear viscosity. One common method involves the extrusion of a molten strand from a die and subsequent stretching of the molten bar with a pair of rotating clamps.

  • The maximum force required to break the extruded strand is called the melt strength.

  • According to Trouton, the tension (extensional) viscosity of stiff liquids is about three times the shear viscosity.

  • The extensional viscosity of low density branched polyethylene (LDPE) increases with increasing shear rate (tension stiffening),
    whereas linear low density polyethylene (LLDPE) becomes "softer" when extended (tension thinning).

  • In film blowing, LDPE bubbles are more stable than LLDPE because of their higher tension viscosity. LDPE is often blended with LLDPE to improve the melt strength and melt stability.

  • Most polypropylene grades have very low melt strength and bubble stability. However, some newer grades have improved melt stability.

  •
